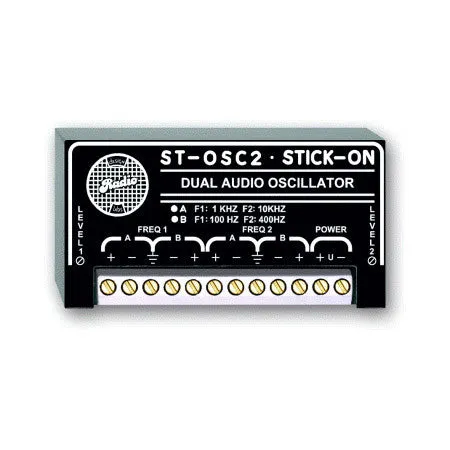

Radio Design Labs ST-OSC2A & ST-OSC2B Audio Oscillators

Each of the ST-OSC2 products is a Dual Audio Oscillator. These products are designed for quick, convenient installation, and reliable operation in a variety of audio applications.

• Low-impedance output drives virtually any audio line
• Outputs may be connected to either balanced or unbalanced lines
• Multiturn level adjustment permits precise output setting
• Separate output level control provided for each oscillator
• Integral AGC circuitry for stable output level
• Each oscillator has two separate outputs to drive stereo lines

The ST-OSC2 products feature RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the POWER minus terminal and any module ground, the module power becomes ground-referenced.

Required Power Supply Sold Separately
